PhantomX Reactor
Robotic arm.
6 Innych produktów w tej samej kategorii:
Więcej informacji

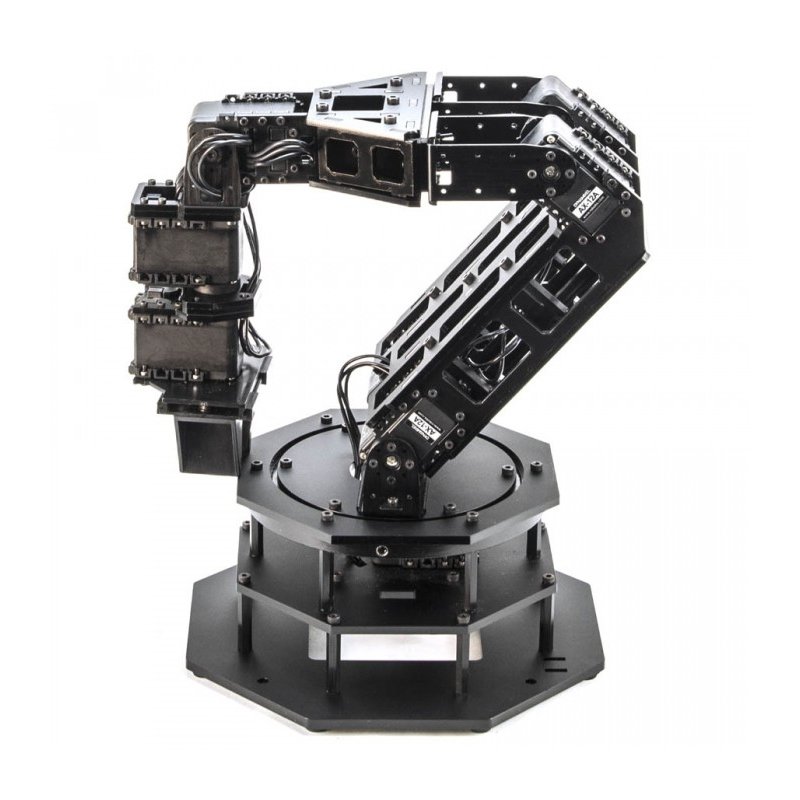

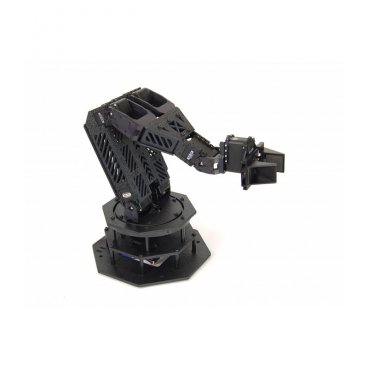

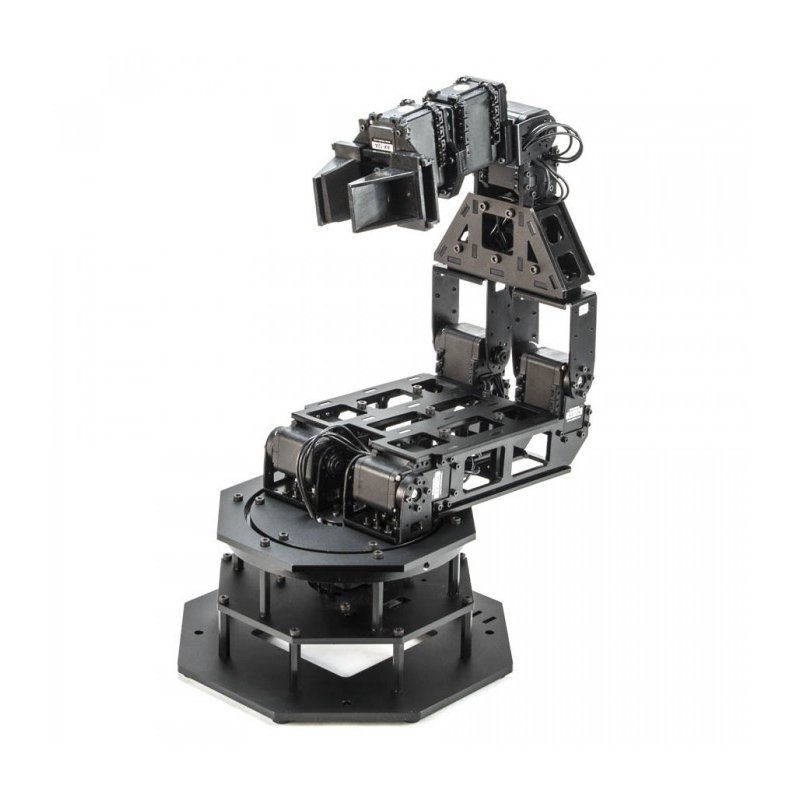

The PhantomX Reactor Robot Arm is the first in Interbotix Labs' offering of Arbotix based research grade robotic arms. The Reactor Arm was designed with reach and agility in mind, but it still boasts considerable strength for an arm of its size.
| Model Nº | PhantomX Reactor |
| Weight | 1.36 Kg |
| Vertical reach | 51 cm |
| Horizontal reach | 38 cm |
| Strength | 30 cm / 200 g; 20 cm / 400 g; 10 cm / 600 g |
| Gripper strength | 500 g |
| Wrist lift strength | 250 g |
Main features:
- AX-12A Dynamixel Actuators
- Solid Needle Roller Bearing Base
- Arbotix Robocontroller for Onboard Processing
- Custom Parallel Gripper
- Mounting Brackets for Cameras & Sensors
Kit Includes:
- 7x AX-12A Dynamixel Actuators
- PhantomX Pincher Arm Hardware & Frame Kit
- ArbotiX Robocontroller
- 12v 5amp power supply
- FTDI 5v Programming Cable
- 2ml Bottle of Turbo-Lock
Applications:
- Robotic arm
Specifications:
- Weight: 1.36 Kg
- Vertical reach: 51 cm
- Horizontal reach: 38 cm
- Strength: 30 cm / 200 g; 20 cm / 400 g; 10 cm / 600 g
- Gripper strength: 500 g
- Wrist lift strength: 250 g
